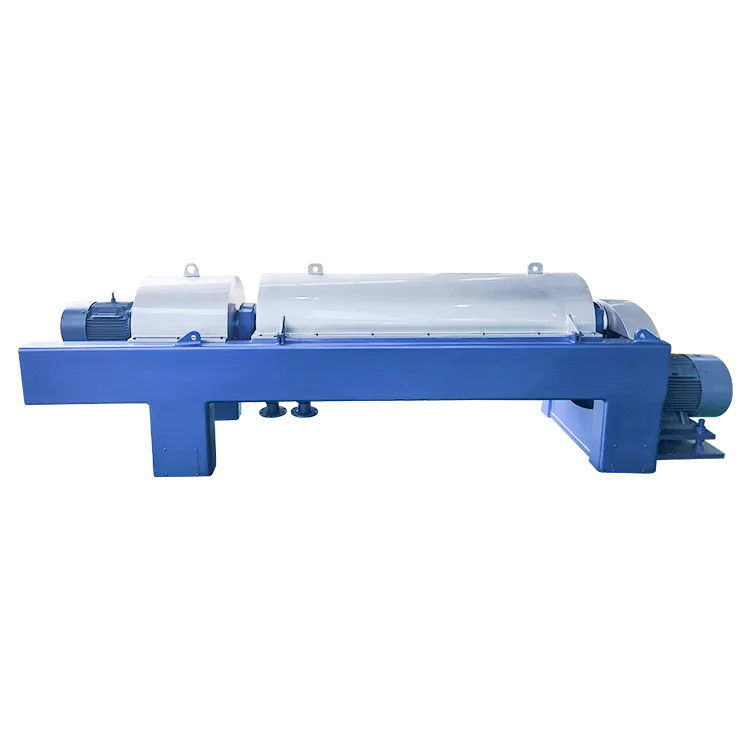

The Brewery Waste Sludge Centrifuge is a decanter centrifuge for breweries and brewery wastewater treatment projects. It continuously separates water from activated sludge, excess sludge, and selected brewery solid-liquid streams before further treatment, storage, or disposal.
Dewatering Performance
| Parameter | Typical Value |
|---|---|
| Bowl speed | 2,000–3,500 rpm |
| Differential speed | 5–30 rpm |
| Activated sludge moisture | 75–85% |
| Solid-phase moisture | ≤65% |
| Clear liquid transmittance | >95% |
| Separation fluctuation | ≤3% |
| Continuous operating cycle | ≥800 h |
| Energy consumption | ≤0.8 kWh/m³ |
| Cake transportation volume reduction | >40% |
Brewery Process Applications
The centrifuge is used for brewery wastewater activated sludge and excess sludge, providing continuous dewatering before storage, transportation, or disposal.
It also handles washing liquids from malt, rice, and similar brewing raw materials, separating starch-containing liquid from solid material before subsequent processing.
For fiber-rich brewery materials, the anti-clogging screw structure supports continuous solids conveying and discharge.
Brewery-Specific Configuration
Anti-clogging screw flight - handles fiber-rich brewery solids and limits material accumulation during discharge.
High-torque differential gearbox - drives the screw against the separated solids during continuous operation.
Dual-motor VFD system - independently controls bowl speed and differential speed.
Integrated CIP system - removes deposits associated with proteins and polyphenols on the bowl surface.
PLC control - regulates feed rate and chemical dosage in the stated configuration.
Quality Control
Incoming Inspection
Purchased components are inspected before production to prevent unsuitable parts from entering assembly and affecting finished equipment.
Process Inspection
Machining and assembly are checked through self-inspection, mutual inspection, and dedicated inspection, allowing production issues to be identified and corrected before final assembly.
Dynamic Balancing
High-precision dynamic balancing equipment is used for centrifuge rotating components to control imbalance risks during high-speed operation.
Final Inspection
The technical department completes final inspection before each centrifuge enters the warehouse or ships, providing a final quality release before delivery.
FAQ
Can Yuanrong replace an existing centrifuge?
Yes. Existing equipment drawings, model information, operating records, and installation interfaces can be used for replacement assessment before quotation.
Can engineering companies purchase the centrifuge for a wastewater project?
Yes. Engineering companies and system integrators can purchase the centrifuge as part of a wastewater or sludge-treatment project. The equipment scope and project responsibilities are defined in the order documentation.
Can the centrifuge be integrated with existing equipment?
The project scope can include the required inlet, outlet, electrical, and control interfaces. Existing system information should be supplied during technical review.
Can Yuanrong support distributor orders?
Yes. Distributor orders use the confirmed product configuration, documentation scope, spare-parts requirements, and delivery information stated in the order.
Can repeat orders use the same technical configuration?
Yes. Confirmed technical specifications and equipment records provide the reference for repeat purchases, helping maintain consistency in model, configuration, documentation, and spare-parts identification.
Can spare parts be purchased after the warranty period?
Yes. Spare-parts and technical service support continue after the warranty period according to the equipment configuration and actual replacement requirements.
What should be confirmed before placing a purchase order?
The purchase order should define the equipment model, technical specification, supply scope, documentation, delivery terms, installation responsibility, commissioning scope, warranty, and spare-parts requirements.
Can technical changes be made after quotation?
Technical changes should be confirmed before production. Changes affecting equipment configuration, interfaces, documentation, or supply scope are incorporated into the final technical specification.
What documents are supplied with the machine?
The equipment documentation includes inspection reports, operating instructions, and product certificates. Additional project documents are listed in the confirmed supply scope.
What information should be sent for a quotation?
Send the sludge type, feed flow, solids concentration, target cake condition, centrate requirement, polymer information, existing equipment data, installation information, quantity, and delivery destination.
