Product Overview
The Mobile Sludge Dewatering system is a transportable unit for on-site sludge dewatering. It provides temporary or additional dewatering capacity for municipal wastewater plants, industrial facilities, environmental contractors, and engineering projects without installing a permanent system.
Applications
Mobile sludge dewatering is used when a treatment site requires temporary dewatering capacity or cannot rely on a permanent dewatering installation.
Municipal wastewater treatment
The unit is used during centrifuge maintenance, equipment replacement, plant expansion, and temporary increases in sludge production.
Industrial wastewater treatment
The system is used at factories and industrial treatment facilities where sludge requires on-site dewatering without a permanent centrifuge installation.
Dredging projects
The equipment separates water from dredged sludge before transport, disposal, or subsequent treatment.
Emergency treatment
The mobile unit provides temporary dewatering during equipment failure, abnormal sludge accumulation, or other short-term treatment interruptions.

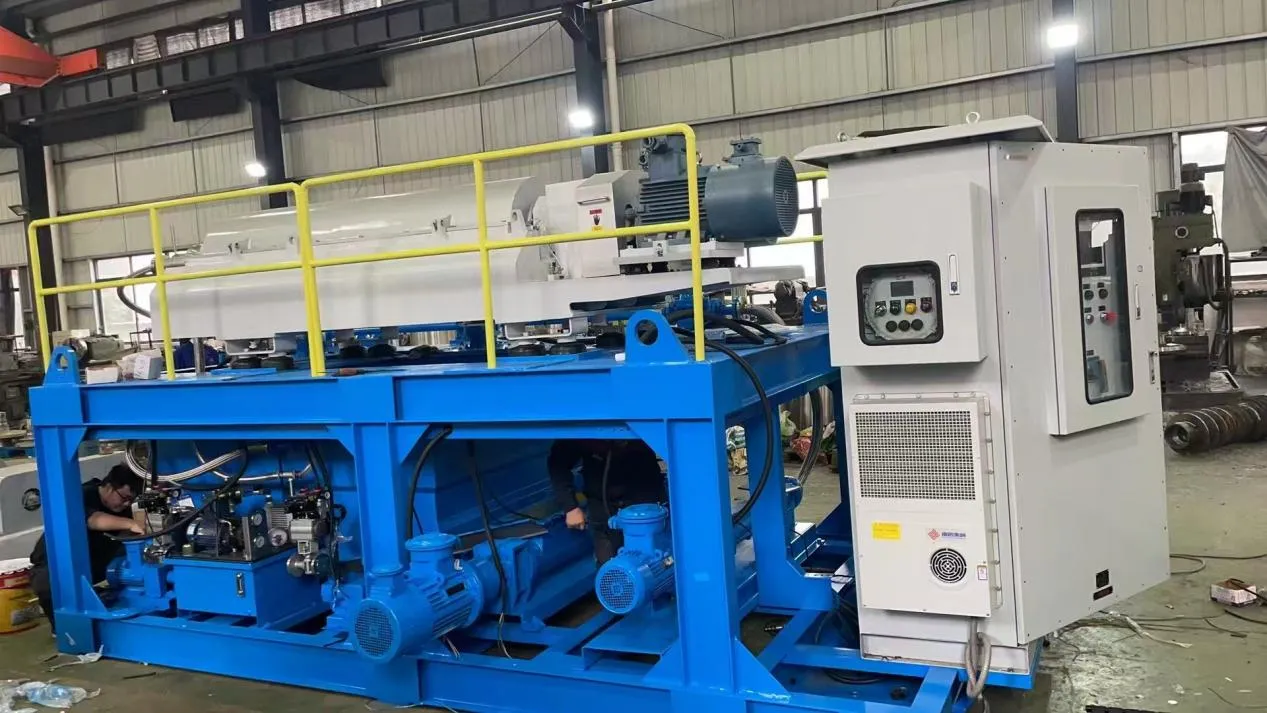

System Configuration
| Item | Specification |
|---|---|
| Main equipment | Horizontal decanter centrifuge |
| Package type | Containerized / skid-mounted |
| Feed system | Sludge feed pump |
| Polymer system | Automatic polymer dosing |
| Control system | Electrical control cabinet |
| Separation method | Continuous centrifugal separation |
Site Deployment
Positioning
The mobile sludge dewatering system comes in a containerized or skid-mounted configuration. It is placed on a prepared site with enough space for operation, inspection, maintenance, and relocation.
Site Connections
The system is connected to the sludge feed, polymer dosing, liquid discharge, dewatered sludge discharge, power supply, and control system. MODBUS communication is available for connection to the plant control system.
Commissioning
After installation and connection, the equipment is started and checked to ensure that the control system and operating parameters are working properly. Commissioning also includes equipment inspection and operator training covering daily operation, safety, and routine maintenance.
Manufacturing Process
CNC Precision Machining
The bowl, screw conveyor, shaft, bearing housings, and other key centrifuge components are precision-machined using CNC machining centres and turning equipment.
Screw Conveyor Machining
The screw conveyor is machined to maintain consistent flight geometry and alignment throughout the rotating assembly.
Rotating Assembly
The bowl, screw conveyor, main shaft, bearings, and drive components are assembled into the complete rotating system before final machine assembly.
Dynamic Balancing
The assembled rotating components are dynamically balanced using high-precision balancing equipment, with G2.5 balancing applied to applicable centrifuge configurations.
Final Assembly
The rotating assembly, drive system, electrical components, control cabinet, and supporting structure are integrated into the completed centrifuge.
Quality Inspection
Dimensional Inspection
Key machined components are checked for critical dimensions and fit before assembly.
Assembly Inspection
Bearing installation, rotating-component alignment, fastening, and overall assembly condition are checked after mechanical assembly.
Dynamic Balancing Test
The bowl and screw rotating assembly is dynamically balanced, with G2.5 applied to applicable centrifuge configurations to control residual imbalance.
Running Test
The completed centrifuge is run under operating conditions to check rotation, vibration, and overall operating condition before shipment.
24-Hour Full-Load Test
Applicable centrifuge configurations undergo a 24-hour full-load trial before shipment to verify continuous operation under full-load conditions.
Final Inspection
The completed equipment undergoes final inspection after testing, including the mechanical assembly, electrical system, operating condition, and required shipment documents.
FAQ
What is the MOQ for mobile sludge dewatering systems?
The MOQ is 1 set.
What is the lead time?
The typical lead time is 30–90 days after order confirmation, depending on the equipment configuration and production schedule.
What payment terms are available?
The standard payment terms are 30% T/T as a deposit and the remaining 70% before shipment.
Does the unit require a separate control cabinet?
No. The electrical control cabinet forms part of the mobile package and controls the supplied dewatering equipment.
What is the warranty period?
The warranty period is one year from the qualified commissioning date.
How are product quality issues handled after delivery?
Reported product quality issues receive an initial response within two hours. Technical personnel then review the reported issue and provide follow-up technical support.
What certifications are available?
Yuanrong holds ISO 14001 and ISO 45001 certifications and operates an ISO 9001:2015 quality management system. Horizontal decanter centrifuges are available with EU CE certification for applicable configurations.
