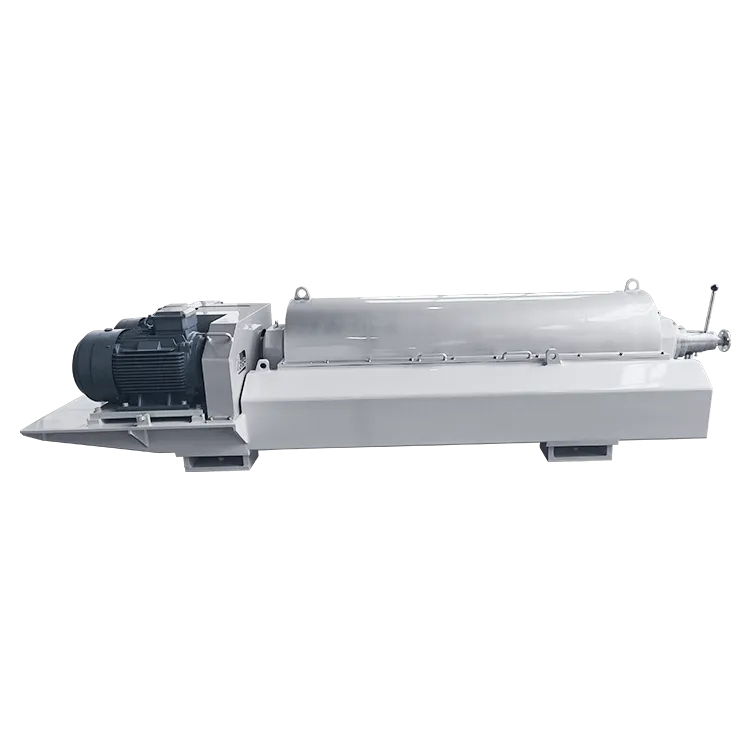

Oil Sludge Centrifuge

In modern drilling operations, managing the solids content within drilling fluids is essential for maintaining fluid properties and protecting expensive downhole equipment. As the final stage of the solids control system, our high-performance oil sludge centrifuge is designed to remove ultra-fine silts and clay particles that traditional shale shakers and mud cleaners cannot capture.

By achieving high-precision separation of particles as small as 2 to 5 microns, our equipment helps operators maintain the ideal mud weight and viscosity, significantly lowering the costs associated with fluid replacement and waste disposal. This not only directly enhances drilling efficiency and reduces downhole complications caused by poor mud performance, but also delivers substantial economic benefits by decreasing the consumption of new mud materials and the volume of waste requiring treatment. Ultimately, this approach alleviates the environmental pressure of waste disposal throughout the project lifecycle.

It is well-known that oilfield materials are highly abrasive and challenging to process. At Yuanrong, we have developed specialized oil sludge centrifuge units with bowls and screw conveyors specifically optimized for high-concentration oily wastewater and high-sand content fluids. To withstand extreme wear, all critical contact zones-including the feed inlet, solids discharge ports, and the entire pushing face of the screw flights-are reinforced with tungsten carbide alloy tiles or wear-resistant ceramic bushings.

Tungsten carbide provides exceptional hardness and abrasion resistance, while ceramics offer superior chemical stability; together, they form a robust first line of defense under harsh operating conditions. This level of protection ensures that the machine can operate continuously on a 24/7 oilfield schedule without frequent maintenance shutdowns. By maximizing the continuity of drilling operations and reducing Non-Productive Time (NPT) caused by equipment failure, we help operators significantly improve the operational efficiency and economic returns of the entire drilling project.

Stability and flexibility are paramount when handling fluctuating feed concentrations. Our centrifuges utilize a common DC bus dual-VFD (Variable Frequency Drive) system. This advanced technology allows the bowl and the screw conveyor to adjust speeds independently and dynamically, enabling the equipment to adapt precisely to real-time changes in feed concentration and viscosity.

Through a high-precision gearbox (differential), the machine maintains constant torque and a stable differential speed, ensuring optimal cake dryness even as mud properties vary. The system is managed via a user-friendly color LCD touchscreen for intuitive operation, allowing field personnel to master adjustments quickly. Additionally, the equipment can be integrated into a central DCS (Distributed Control System) via MODBUS protocol for remote monitoring and operation in hazardous or remote locations. This not only enhances operational safety-particularly in dangerous oilfield zones- also enables centralized management and data analysis for multiple units, providing powerful support for production optimization.

Trust is built on rigorous quality control. Our factory is certified under ISO 9001:2008 (Quality), ISO 14001:2004 (Environment), and GB/T28001 (Occupational Health and Safety) management systems, marking our adherence to the highest international and domestic standards.

Every oil sludge centrifuge must undergo G2.5 grade dynamic balancing before leaving the factory to ensure smooth operation and minimize the impact of vibration on the equipment and its surroundings. We also conduct a mandatory 24-hour full-load trial run to comprehensively verify performance and reliability under actual working conditions. We utilize world-class components, including heat-resistant SKF bearings and Siemens or ABB explosion-proof motors, to ensure safety in flammable and explosive oilfield environments. Each unit comes standard with a four-tier protection system-including main motor overload protection, bearing temperature sensors, vibration monitoring, and safety guards-to protect equipment investment and personnel safety, providing a solid guarantee for secure oilfield production.
